Spot Welding Panels

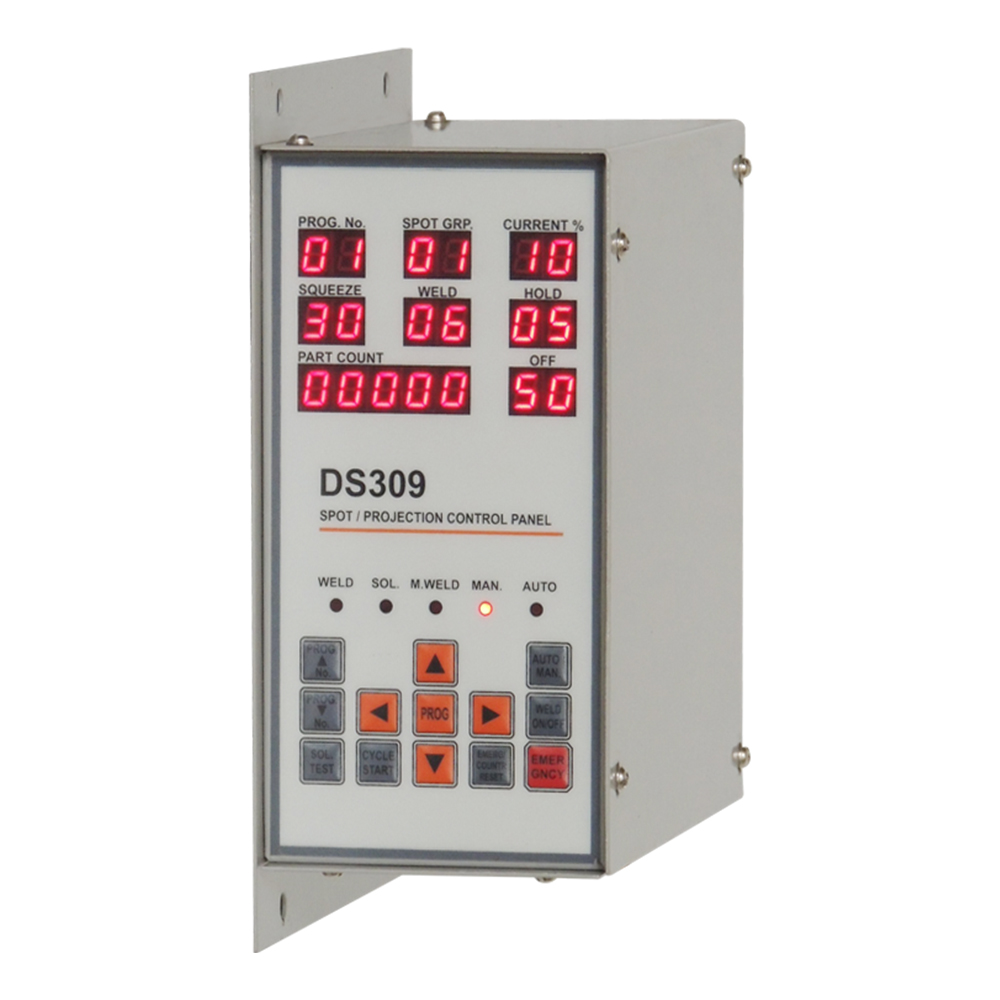

DS309 Spot / Projection Welding Panel

DS309 is basic model for general purpose spot and projection welding machines and is a most selling panel.

Specifications:-

Supply :- 415 Volt +10% -15%, 50/60 Hz

Programs :- 10 Memories for Timers and Current.

Counter :- 5 Digit, Common for all programs.

Timers :- 4 Timers. Squeeze, weld, hold and off timers.

Time :- 1 to 99 Pulses for each timer (1 = .02 sec.)

Spot Group :- 1 to 10 spots can set for a job.

Repeat Mode :- Yes, Auto or manual mode selectable.

Firing Power :- Suitable for 50 to 400 amp SCR’s

Others :- Weld On / Weld Off Button, Solenoid valve test button and cycle start button for testing weld process.

Accessories :- Firing PCB312 with Snubber.

Click Here for Spot welding machines

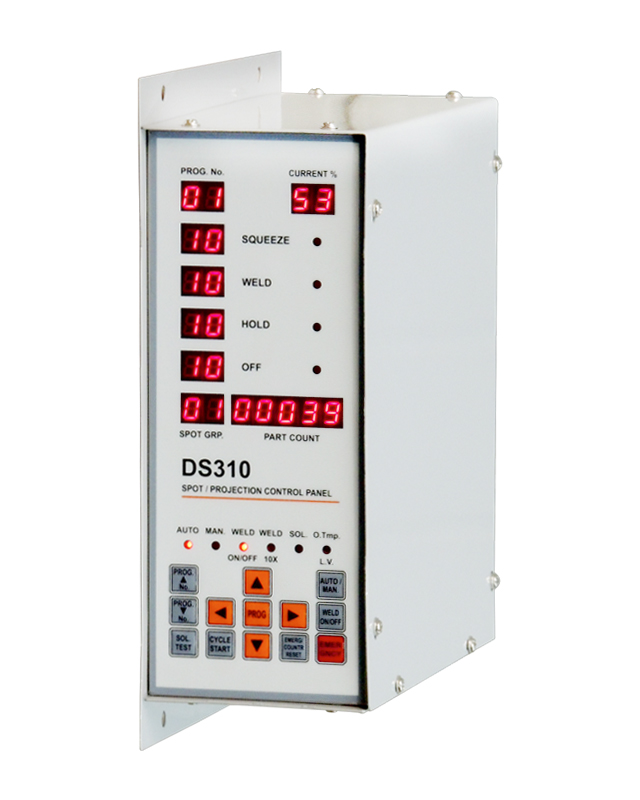

DS310 Spot / Projection Welding Panel

DS310 is higher model for general purpose spot and projection welding machines with counter for each program and 10x weld time configurable and thermostat connections for over-temperature safety.

Specifications:-

Supply :- 415 Volt +10% -15%, 50/60 Hz

Programs :- 10 Memories for Timers, Current and Counter.

Counter :- 5 Digit, Separate for each program.

Timers :- 4 Timers. Squeeze, weld, hold and off timers.

Time :- 1 to 99 Pulses for each timer (1 = .02 sec.), and weld time can be configured for 10 to 990 Pulses.

Spot Group :- 1 to 10 spots can set for a job.

Repeat Mode :- Yes, Auto or manual mode selectable.

Firing Power :- Suitable for 50 to 1200 amp SCR’s

Thermostat :- NC type Thermostat Input

Others :- Weld On / Weld Off Button, Solenoid valve Test button, Emergency stop and cycle start button for testing weld process.

Accessories :- Firing PCB282 with Snubber.

Click Here for Projection welding machines

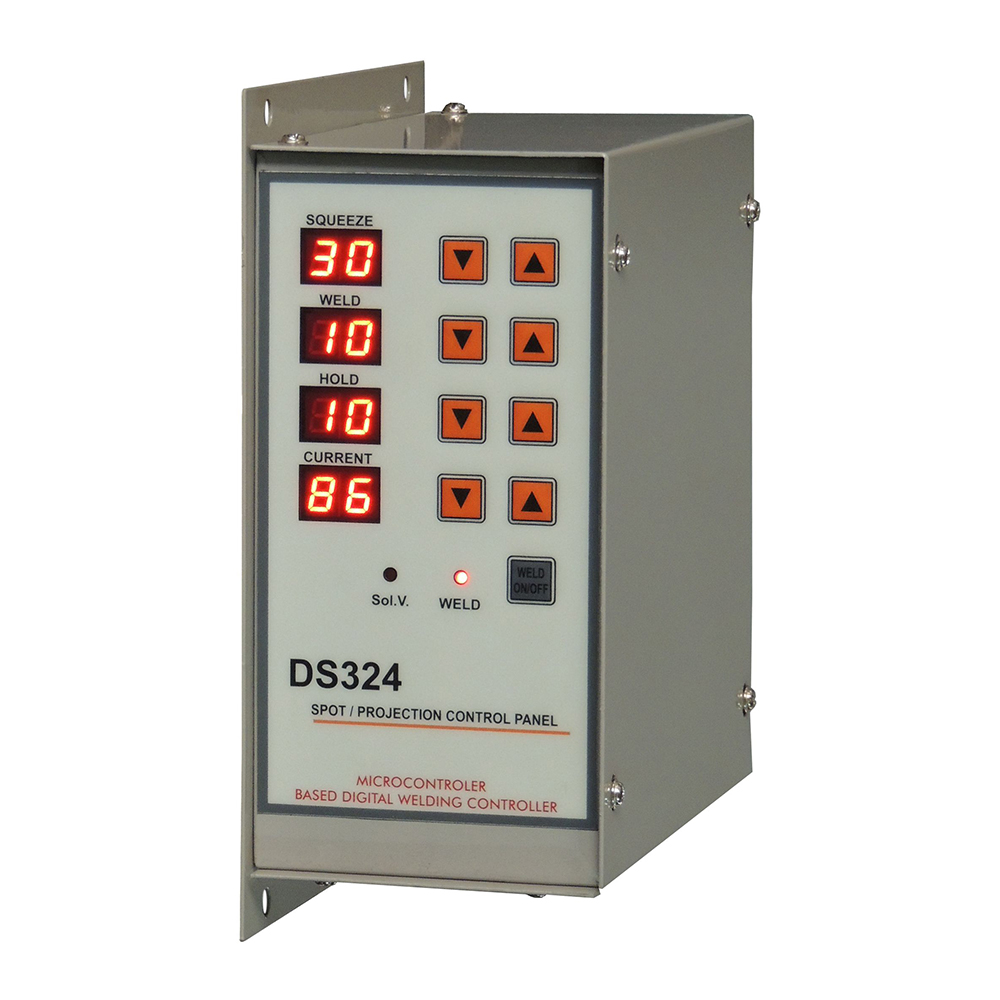

DS324 Easy Operate, Spot / Projection Welding Controller

The DS324 is simplest and easy operate spot welding and projection welding controller with digital parameter setting. The squeeze, weld, hold timer and weld-current value is directly settable by their ideal tactile switches. All set parameters are retain in memory. The inbuilt firing circuit gives hassle free quick installation.

Specifications:-

Supply :- 415 Volt +10% -15%, 50/60 Hz

Timers :- Squeeze, weld and hold timers.

Power :- 1 to 99% Adjustable.

Time :- 1 to 99 Pulses for each timer (1 = .02 sec.)

Firing Power :- Suitable for 50 to 600 amp SCR’s

Others :- Weld On / Weld Off Button.

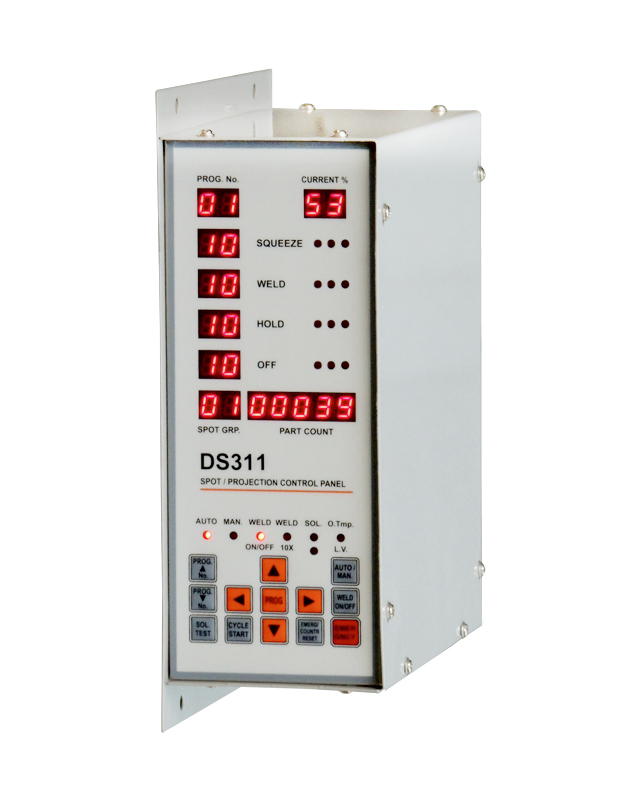

DS311 Projection Welding Panel

DS311 is special purpose model for projection welding machines having double cylinder one for job clamping and other cylinder for welding. Beside of all 310 model features more are double squeeze time, tripple weld and hold timers.

Specifications:-

Supply :- 415 Volt +10% -15%, 50/60 Hz

Programs :- 10 Memories for Timers, Current and Counter.

Counter :- 5 Digit, Separate for each program.

Timers :- 9 Timers. Clamp, squeeze, weld1, hold1, weld2, hold2, weld3, hold3 and off timers.

Time :- 1 to 99 Pulses for each timer (1 = .02 sec.), and weld time can be configure to 10 to 990 Pulses.

Spot Group :- 1 to 10 spots can set for a job.

Repeat Mode :- Yes, Auto or manual mode selectable.

Firing Power :- Suitable for 50 to 1200 amp SCR’s

Others :- Weld On / Weld Off Button, Solenoid valve Test button, Emergency stop and cycle start button for testing weld process.

Accessories :- Firing PCB282 with Snubber.

Click Here for Projection welding machines

Double Head Projection Welding Panel

The DS312 panel is made for double head projection welding machine that is used to save connected electric supply by placing two operators on a projection welder, when one operator is preparing job to weld the other operator can weld same job on second head. The weld time is configurable to 1x or 10x weld time and panel has thermostat input to protect machine in case of over-heat due to overload or water failure.

Specifications:-

Supply :- 415 Volt +10% -15%, 50/60 Hz

Programs :- 10 Memories for Timers, Current and Counter.

Counter :- 5 Digit, Separate for each program.

Timers :- 4 Timers. Squeeze, weld, hold and off timers.

Time :- 1 to 99 Pulses for each timer (1 = .02 sec.), and weld time can be configured for 10 to 990 Pulses.

Spot Group :- 1 to 10 spots can set for a job.

Repeat Mode :- Yes, Auto or manual mode selectable.

Firing Power :- Suitable for 50 to 1200 amp SCR's

Thermostat :- NC type Thermostat Input

Others :- Weld On / Weld Off Button, ‘Solenoid valve 1’ Test button, Emergency stop and 'cycle start 1st' button for testing weld process.

Accessories :- Firing PCB282 with Snubber.

Click Here for Projection welding machines

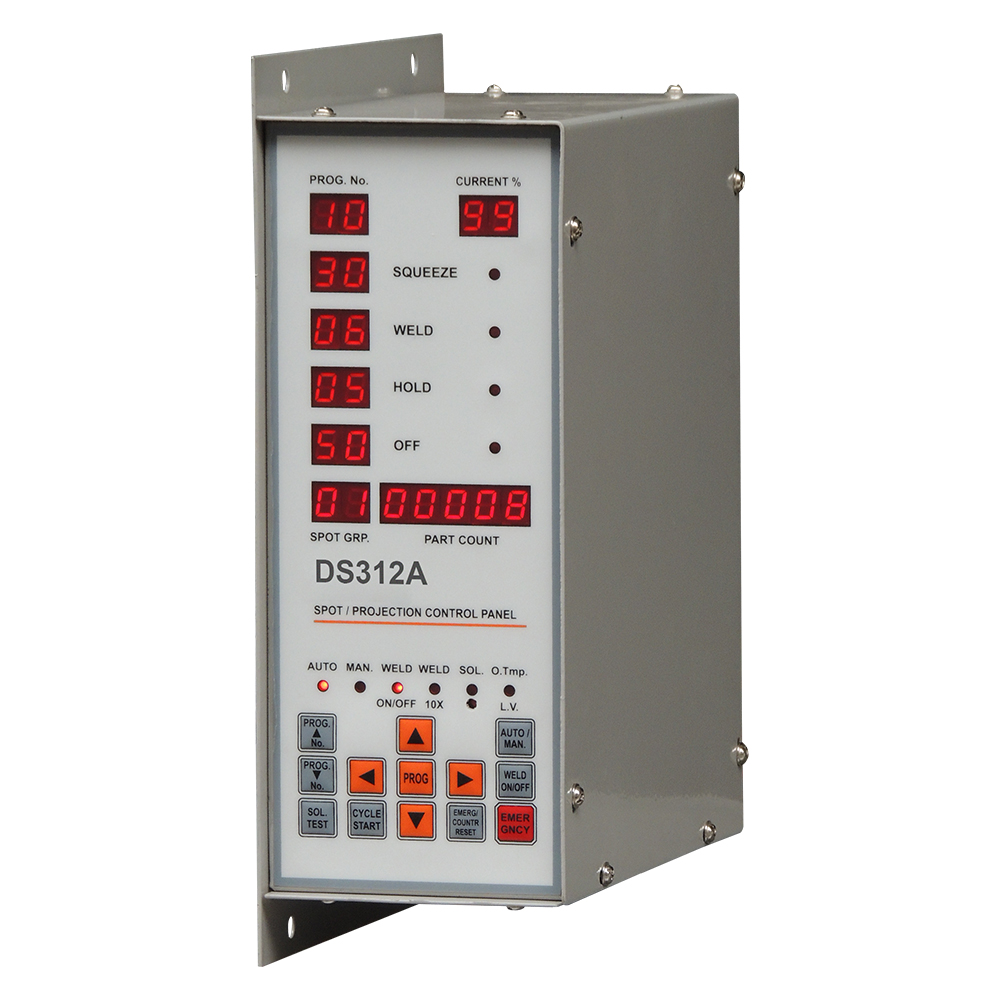

Double Head Projection Welding Panel

The DS312A panel is made for duel head projection welding machine, that is used to save connected electric supply by placing two operators on a projection welder, when one operator is preparing item to weld the other operator can weld same or other item with different settings. The weld time is configurable to 1x or 10x time and panel has thermostat input to protect machine in case of over-heat due to overload or water failure.

Specifications:-

Supply :- 415 Volt +10% -15%, 50/60 Hz

Programs :- 10 Memories for Timers, Current and Counter. Individual setting for both operators in groups like 1st program for 1st operator and 2nd program of 2nd operator so on 3/4, 5/6, 7/8 & 9/10

Counter :- 5 Digit, Separate for each program.

Timers :- 4 Timers. Squeeze, weld, hold and off timers.

Time :- 1 to 99 Pulses for each timer (1 = .02 sec.), and weld time can be configured for 10 to 990 Pulses.

Spot Group :- 1 to 10 spots can set for a job.

Repeat Mode :- Yes, Auto or manual mode selectable.

Firing Power :- Suitable for 50 to 1200 amp SCR's

Thermostat :- NC type Thermostat Input

Others :- Weld On / Weld Off Button, ‘Solenoid valve 1’ Test button, Emergency stop and 'cycle start 1st' button for testing weld process.

Accessories :- Firing PCB282 with Snubber.

Click Here for Projection welding machines

PRC624 Paddle Operated Spot Welding Panel

The PRC624 is a digital display panel with Chinese kit and is made for paddle operated "Spot Welding" machine. It is complete with "Thyristor module". Electrician have to install input & output wires only.

Specifications:-

Supply :- 220 Volt +10% -15%, 50/60 Hz

Timers :- 1 weld timer with display, adjustable from 1 to 50 cycles.

Power :- Current setting with display, adjustable from 1 to 99%

Output :- Suitable for 1 to 10 KVA Machines.

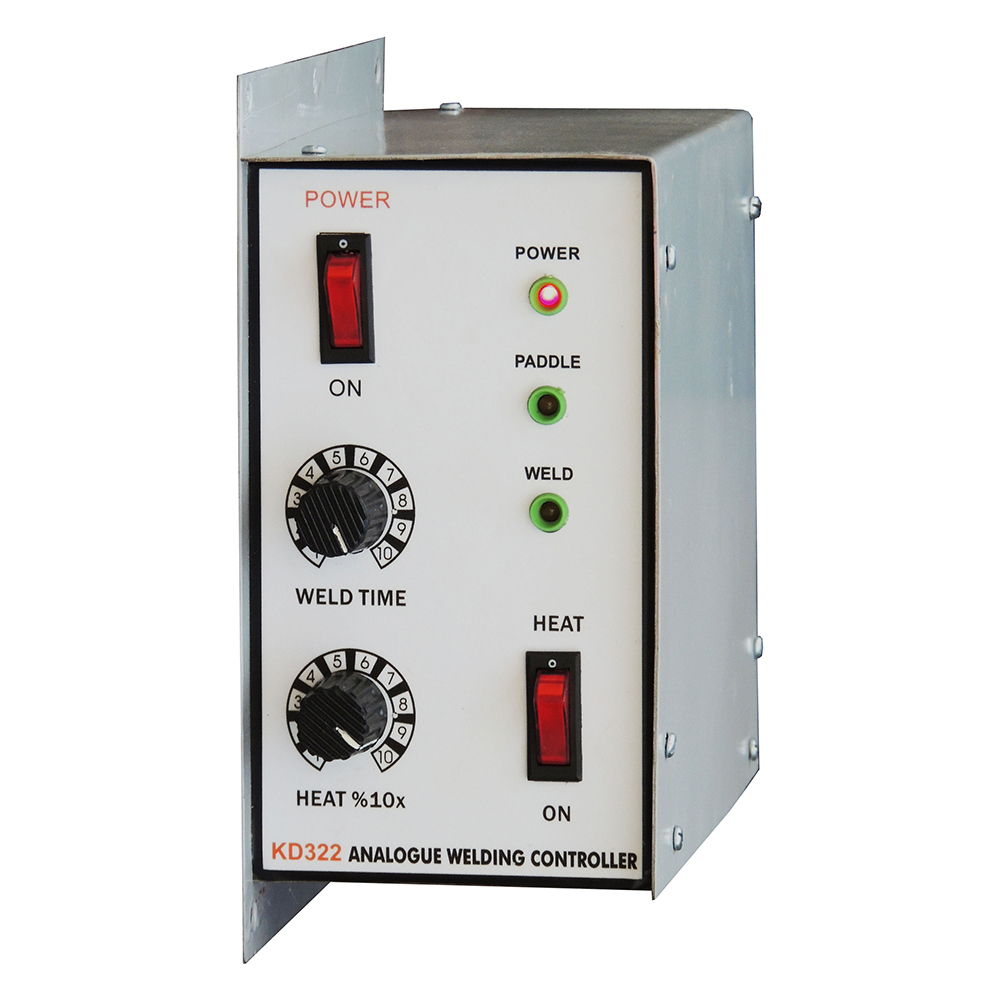

KD322 Paddle Operated Spot Welding Panel

The KD322 spot welding controller is a microcontroller based welding controller and is made for paddle operated Thyristor controlled machine. It has fast weld time and current setting through knobs. It has inbuilt firing circuit, hence need minimum wiring for fast installation.

Specifications:-

Supply :- 415 Volt +10% -15%, 50/60 Hz

Time :- 0 to 1 sec., 0.5 Or 2 Sec. from jumper

Current :- 0 to 100% Adjustable

Firing Power :- Suitable for 50 to 400 amp SCR’s

Features :- Weld On/Off Switch, Paddle & Weld LED

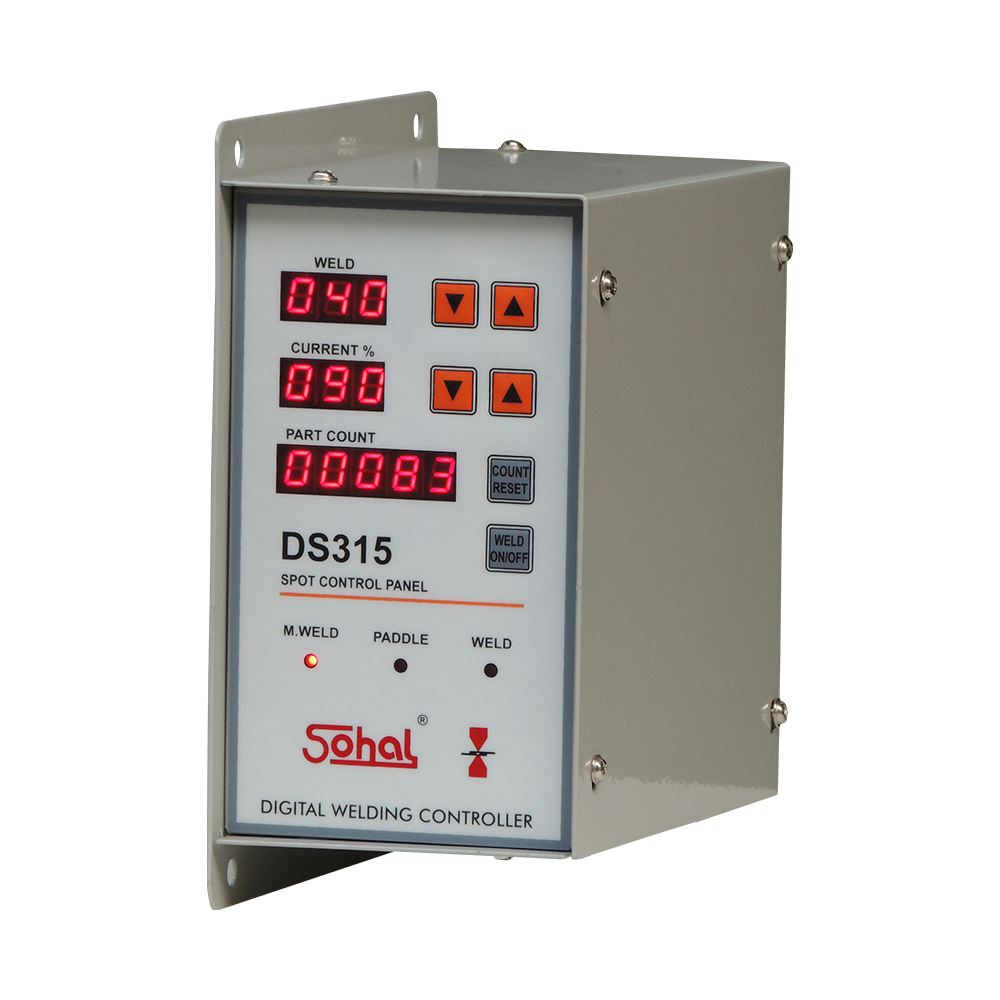

Paddle Operated Spot Welding Panel

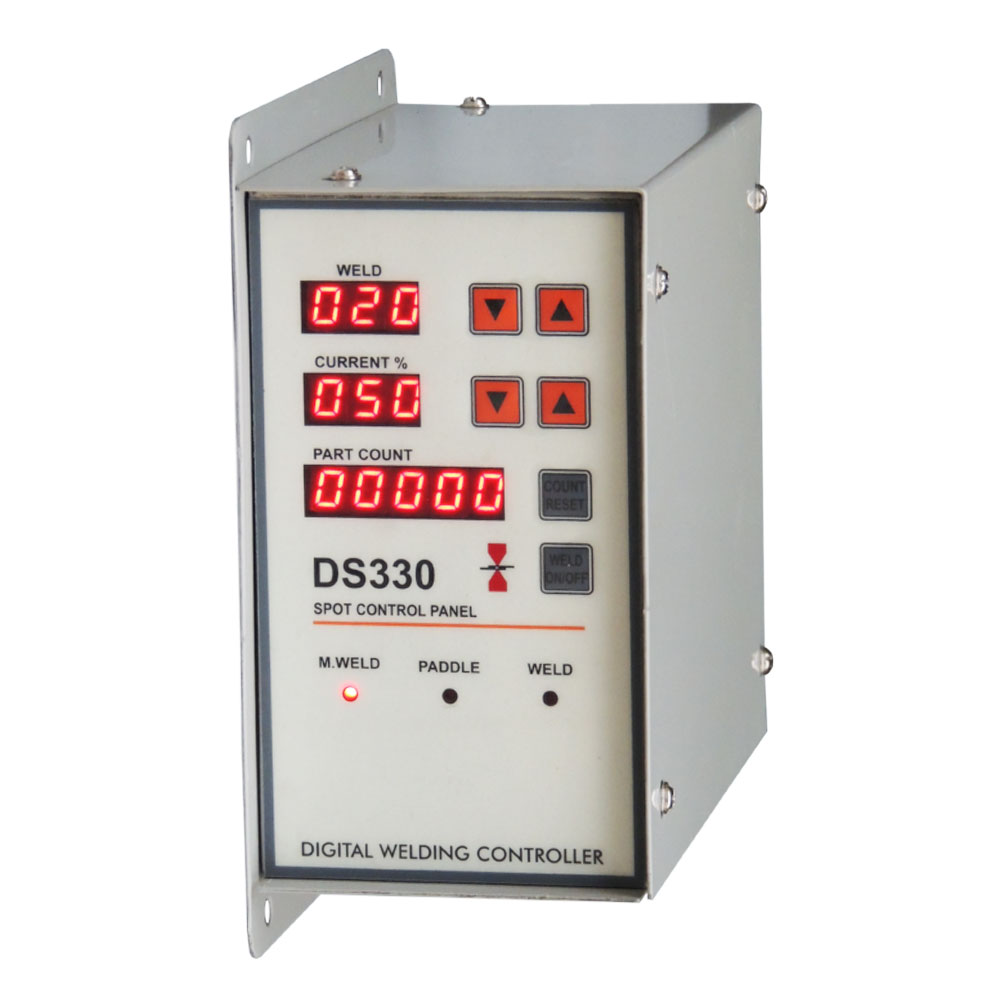

The DS330 panel is made for paddle operated spot welding machine. It is suitable for any brand ‘SCR’ controlled, paddle operated spot welder. The inbuilt firing circuit gives hassle free quick installation.

Specifications:-

Supply :- 415 Volt +10% -15%, 50/60 Hz

Counter :- 5 Digit

Timers :- 1 weld timer 1 to 200 half cycles. ( Other option available.)

Power :- 1 to 99%

Firing Power :- Suitable for 50 to 600 amp SCR’s

Others :- Weld On / Weld Off and counter reset Button

Click Here for Spot welding machines

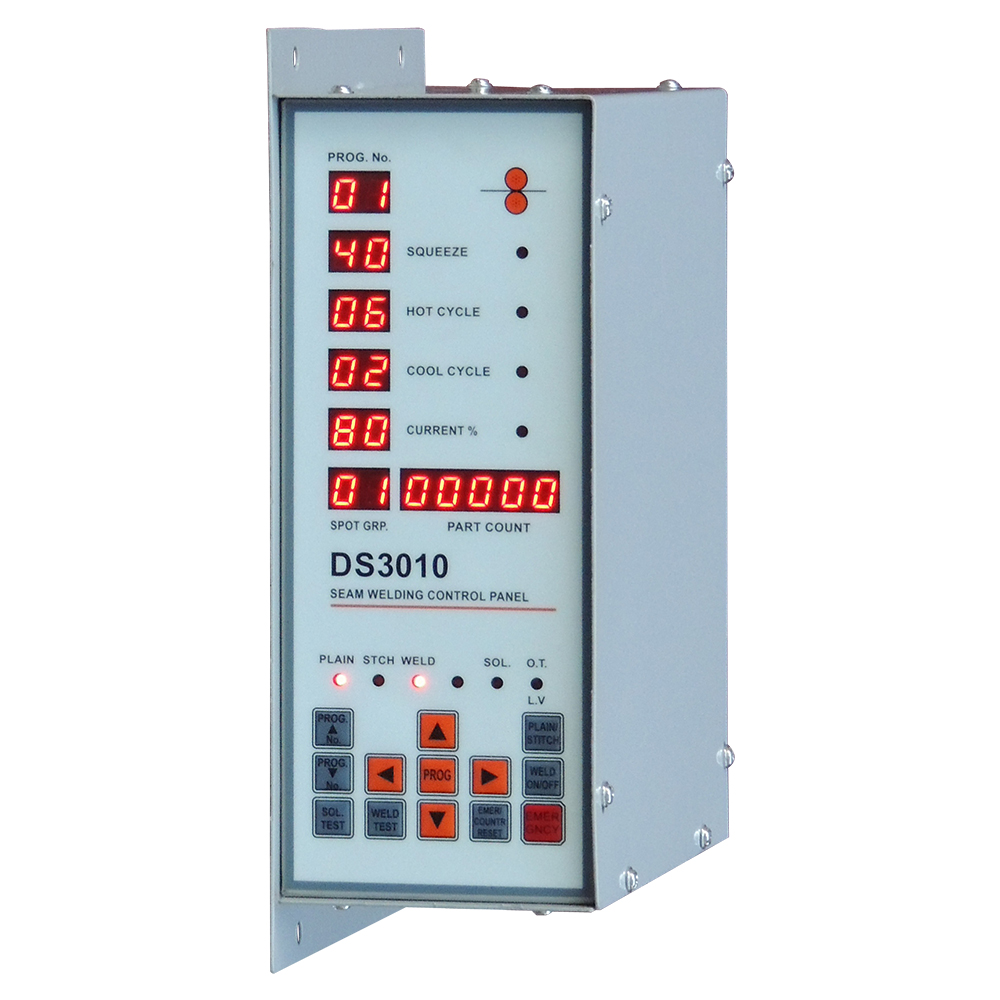

Seam Welding Control Panel

DS3010 is digital synchronous control panel for seam welding machines with group setting for multiple welds on a item and counter for each program and 10x weld time configurable and thermostat connections for over-temperature safety.

Specifications:-

Supply :- 415 Volt +10% -15%, 50/60 Hz

Programs :- 10 Memories for Timers, Current and Counter.

Counter :- 5 Digit, Separate for each program.

Timers :- 3 Timers. Squeeze, weld, and off timer.

Time :- 1 to 99 Pulses for each timer (1 = .02 sec.).

Spot Group :- 1 to 10 spots can set for a job.

Stitch :- Stitch or Plain weld mode selectable.

Firing Power :- Suitable for 50 to 1200 amp SCR’s

Thermostat :- NC type Thermostat Input

Others :- Weld On / Weld Off Button, Solenoid valve Test button, Emergency stop and weld test button.

Accessories :- Firing PCB282 with Snubber.

Click Here for Seam welding machines
